Button Control 1.5mm Medical Supplies Flammability Test Equipment

Name: Button Control 15mm Medical Supplies Flammability Test Equipment
Brand: Sinuo
Price: 1 USD

Brand Name : Sinuo

Model Number : SN7713

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 10 Sets Per Month

Delivery Time : 20 Days

Packaging Details : Plywood

Control Method : Button Control

Test Samples : Surgical Masks

Flame Height : 40 ± 4mm

Linear Velocity : 60±5mm/s

Temperature Probe Diameter : 1.5mm

Head Model Material : Metal

Contact Now

Medical Supplies Surgical Face Masks Flammability Test Equipment

Product overview:

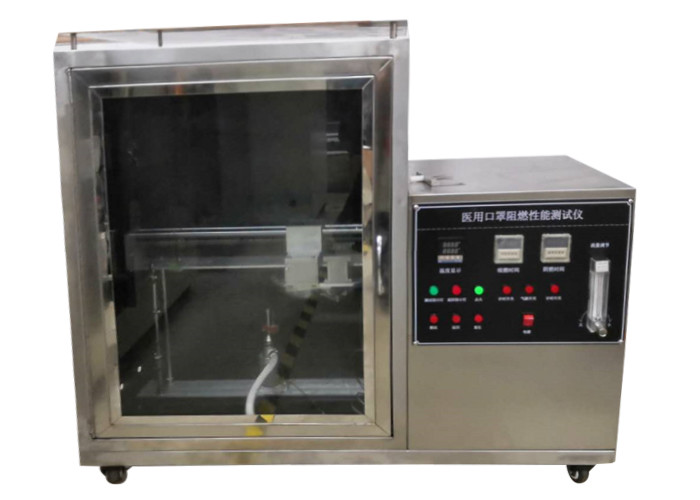

The medical mask flammability test equipment is used to test the burning performance of medical masks after contacting the flame at a certain linear speed.

Equipment characteristics:

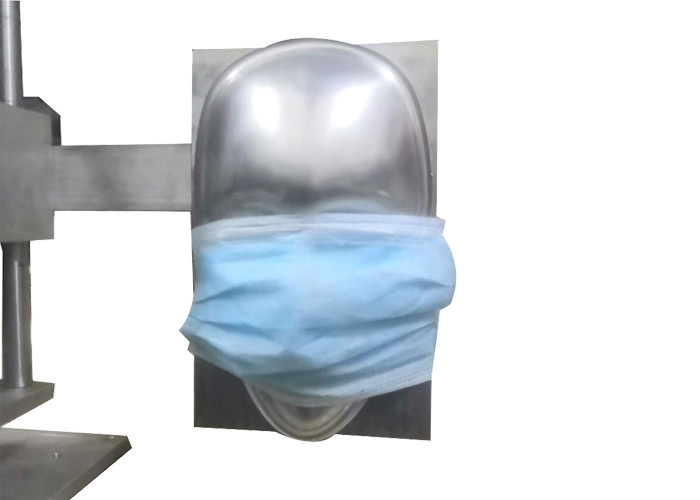

1. The mask fixture is a metal (aluminum) human head model, which can fully simulate the actual use state of the mask;
2. The burner is equipped with propane (liquefied gas) and other combustible gas interfaces;
3. The burner height is fixed;
4. The burner position is fixed;
5. Continuous burning time and smoldering burning time are recorded manually, paused manually, digital display;
6. Equipped with flame temperature measurement probe and flame temperature display.

Button Control 1.5mm Medical Supplies Flammability Test Equipment

Technical Parameters:

Item	Parameters
Linear velocity of head model nose	60±5mm/s
Flame height	Can be adjusted, default at 40 ± 4mm
Flame temperature measurement probe diameter	1.5mm
The flame is at a height from the top of the burner	At 20 ± 2mm, the temperature is 800 ± 50 ℃
The distance between the top of the burner and the lowest point of the mask	20±2mm
Test head model	Meta head model
Afterburning time and smoldering time timer	0-99.99 seconds, accuracy: 0.1s
Equipment size	Approx. 1000mm×600mm×1200mm
Power supply	AC220V, 50Hz,200W
Equipment weight	Approx. 60KG
Equipment accessories	A set of metal head model, A set of combustion pipe and burner, A set of head model automatic electronic control integrated mobile system, A set of electronic control system, A set of timing control system

Button Control 1.5mm Medical Supplies Flammability Test Equipment

This simple version ones are in stock
