IEC 60898-1 MCB Rusting Resistance Air Saturated Test Chamber

Name: IEC 608981 MCB Rusting Resistance Air Saturated Test Chamber
Brand: Sinuo
Price: 1 USD

Brand Name : Sinuo

Model Number : SNQC1016

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : L/C, , T/T, Western Union, MoneyGram

Supply Ability : 1 set per month

Delivery Time : 30 Days

Packaging Details : Plywood

Applied Standard : IEC 60898-1 Clause 9.14

Control Method : Microcomputer temp. controller

Sensor Type : Platinum temp. sensor (PT-100)

Chamber Material : SUS#316 full argon welding

Test Space : W250mm×D200mm×H200mm

Temperature : Saturated water vapor temp. (20±5)℃;

Timer Type : 0.1～999.9s/m/h

Response Time : Up to 99% within ≤1min

Contact Now

IEC 60898-1 MCB Rusting Resistance Air Saturated Test Chamber

Product Information:

This air saturated test chamber is required by IEC 60898-1:2015 clause 9.16, IEC 61009-1:2012, etc. It is used to process further rusting in saturated water vapor for plugs, screws and other metal components after being soaked in ammonium chloride water.

Chamber Features:

1. Adopt microcomputer temperature controller. +, M. +. Control LED digital display.
2. Adopt platinum temperature sensor (PT-100), and temperature is precisely controllable with resolution ability 0.1℃.
3. Water vapor test target can be set and controlled, steam test operation timing can be set and controlled.
4. Inner chamber stainless steel material: SUS#316 full argon welding, and outer chamber: SUS#316 material.

5. Fully automatically control.

Technical Parameters:

Input power: AC220V±10%, 50/60Hz;
Test space: W250mm×D200mm×H200mm;
Test saturated water vapor temperature: (20±5)℃;
Humidity indication: LCD temperature and humidity meter displays the current ambient temperature and humidity;
Timer: 0.1～999.9s/m/h continuous timing and setting, there will be a buzzer sound when the timer reaches the set value;
Response Time: up to 99% within ≤1min;
Box material: SUB304 stainless steel.

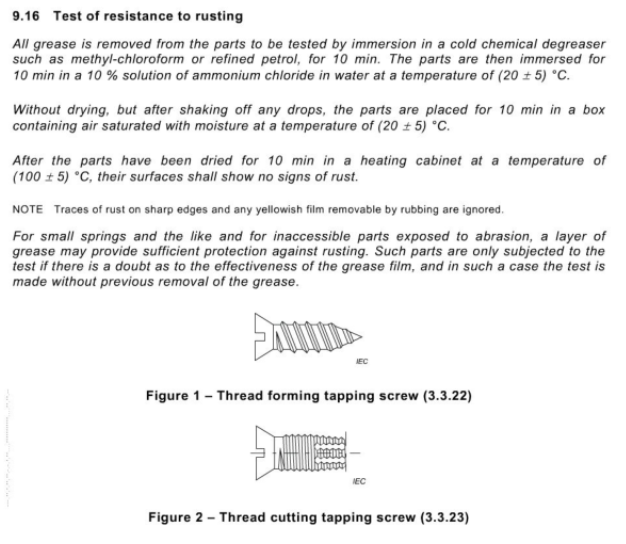

Standard Details:

IEC 60898-1 MCB Rusting Resistance Air Saturated Test Chamber
