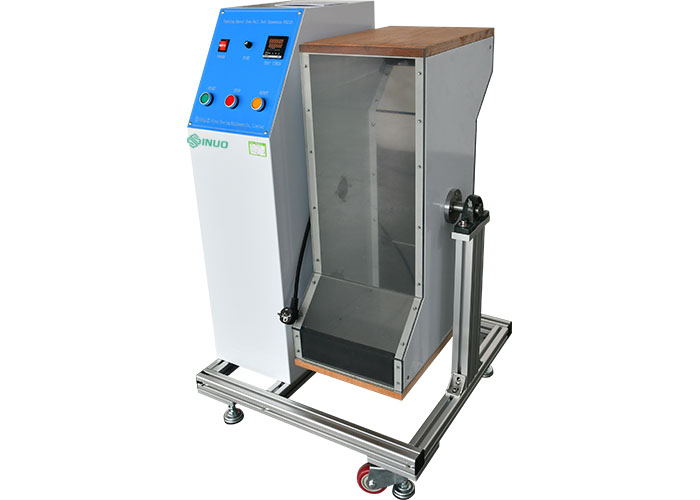

5rpm Tumbling Barrel 500mm Height For Plug And Socket

Name: 5rpm Tumbling Barrel 500mm Height For Plug And Socket
Brand: Sinuo
Price: 1 USD

5rpm Tumbling Barrel 500mm Height For Plug And Socket Manufactures

Brand Name : Sinuo

Model Number : BF2123

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 10 days

Packaging Details : Plywood

Rotation speed : 5rpm

Fall rate : 10 times per min

Power supply : AC230V±10%,50Hz

Test times : 0~9999

Height of Fall : 500mm

Barrel number : Single

Application : Plug and socket

Warranty : Free warranty

Contact Now

Tumbling Barrel

Product information:

Standard: According to IEC 60884-1:2013 Clause 24.2 and procedure 2 of IEC 60068-2-31. Application: This device is suitable for test the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.

Test sample: plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories. Feature: This tester can preset test times, automatic stop when set test times completed.

Technical Parameters:

Rotation speed	5rpm
Fall rate	10 times per min
Material	Sideways 1.5mm high-quality steel plate, upper and lower for 3mm steel pad in the 10-19mm wood and oblique part slide surface is plastic laminate, with triangle rubber pad
Test times	0~9999
Height of Fall	500mm
Barrel number	Single
Application	Plug and socket and similar electrical accessories
Power supply	Single-phase 230V±10%,50Hz

5rpm Tumbling Barrel 500mm Height For Plug And Socket

Product Tags:

5rpm Tumbling Barrel

500mm Height Tumbling Barrel

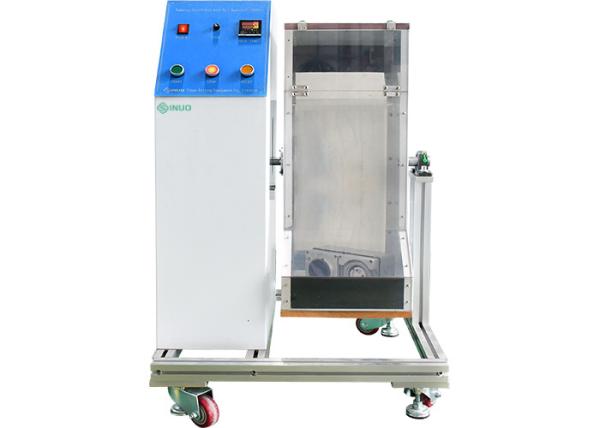

5rpm Tumbling Barrel 500mm Height For Plug And Socket Images
