Coupler Pulling Test Apparatus Connector To Pull Test For Household IEC 60320-1

Name: Coupler Pulling Test Apparatus Connector To Pull Test For Household IEC 603201
Brand: Sinuo
Price: 1 USD

Coupler Pulling Test Apparatus Connector To Pull Test For Household IEC 60320-1 Manufactures

Brand Name : Sinuo

Model Number : SN2104

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 20 days

Packaging Details : Plywood

Test Station : Single

Power Supply : AC 220V, ±50Hz

Humidity : 30%-90%

Working Temp. : 5-35℃

Flexible Cable : 40±2 mm

Pulling Force : 0-100N

Pulling Method : 50 times in one direction

Appliance Input Socket : Optional gauge

Contact Now

Coupler Pulling Test Apparatus Connector To Pull Test For Household IEC 60320-1

Standards For Coupler Pulling Test Apparatus:

IEC60320-1:2021 "Appliances couplers for household and similar general purposes- Part1:General requirements" clause 23.3 and figure 19.

Test principle For Coupler Pulling Test Apparatus:

The connector is inserted into an appliance inlet of a type corresponding with the connector to be tested and complying with the relevant standard sheet, a spring force mechanism is used to apply lateral force to it.

Technical parameters For Coupler Pulling Test Apparatus:

Test station	Single station
Flexible cable bending height	40±2 mm,adjustable
Power supply	AC 220V, ±50Hz
Working temperature	5-35℃
Humidity	30%-90%
Pull force range	0-100N
Pulling method	50 times in one direction and then 50 times in the opposite direction
Cable selection and corresponding pull value table
Appliance input socket	Optional gauge according to requirements

Structure For Coupler Pulling Test Apparatus:

The connector test should be equipped with an appliance inlet of a type corresponding with the connector to be tested and complying with the relevant standard sheet.

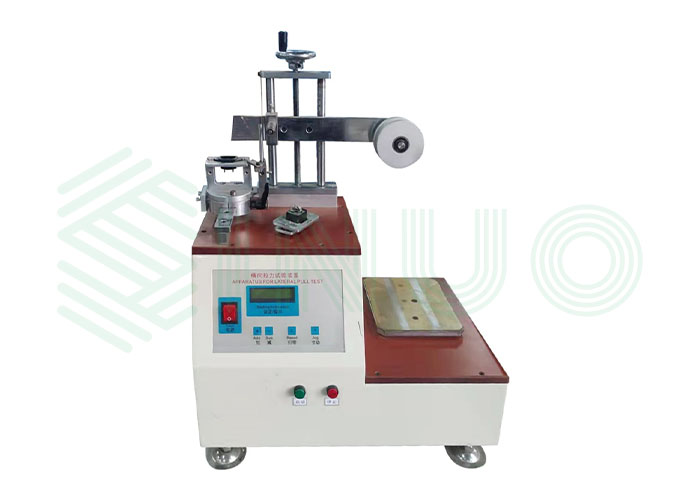

Coupler Pulling Test Apparatus Connector To Pull Test For Household IEC 60320-1
