Clause 18 Microwave Oven Door Endurance Test Equipment IEC 60335-2-25

Name: Clause 18 Microwave Oven Door Endurance Test Equipment IEC 60335225
Brand: Sinuo
Price: 1 USD

Clause 18 Microwave Oven Door Endurance Test Equipment IEC 60335-2-25 Manufactures

Brand Name : Sinuo

Model Number : SN1A01

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 15 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Standard Exporting Plywood Case

Standard : IEC 60335-2-25

Clause : 18

Test station : Single station

Control : PLC intelligent control

Drive : Stepper motor drive

Sample clamping method : Vacuum suction cup, pneumatic

Contact Now

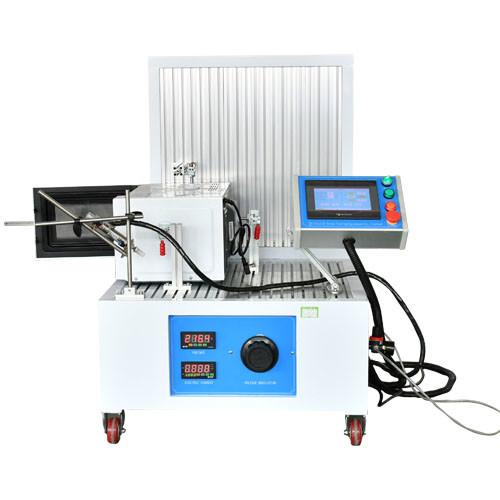

IEC 60335-2-25 Clause 18 Microwave Oven Door Endurance Test Equipment

Brief Introduction:

It is conforms the standard of IEC60335-2-25:2006 clause 18.This apparatus is a special tester which is used to test the abrasion resistance of the microwave oven door system, including the structure of the hinge, microwave seal and other related parts during use.

The mechanical arm is driven by the motor which drives the vacuum suction cup to suck the microwave oven door to open and close at a certain speed and angle to verify the reliability of the door system including hinges, microwave oven seals and other related components.

Technical Parameters:

Test station	Single station
Control method	PLC intelligent control,7-inch humanized touch interface operation
Drive	Stepper motor drive
Sample clamping method	Vacuum suction cup, pneumatic
Opening/Closing speed	0-360°/s,adjustable
Interval time of opening/closing	0-99.9s,adjustable
Test frequency	6 times/min, a cycle is formed by the door opening/closing process and the pause time
The angle of opening/closing	0-135°,adjustable
Test times	0-999999 time,adjustable
Load currency	Voltage 0-250V, adjustable, current can be displayed. It is equipped with 10A power socket which can work with samples below 2000W
Microwave oven door interlock switch button, pneumatic	Microwave oven door interlock switch button, pneumatic
