IEC 60335-1 Clause 22.32 Ceramic Material Fuchsine Spirit Pressure Test Apparatus

Name: IEC 603351 Clause 2232 Ceramic Material Fuchsine Spirit Pressure Test Apparatus
Brand: Sinuo
Price: 1 USD

IEC 60335-1 Clause 22.32 Ceramic Material Fuchsine Spirit Pressure Test Apparatus Manufactures

Brand Name : Sinuo

Model Number : SN1110

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood

Test Pressure : 0~20MPa

Power Supply : AC220V/50Hz

Boost Rate : 100KPa/s

Test Station : Single

Container Bottle : 450ml

Weight : 150kg

Test Time : 1~9999H

Solution : Configure

Contact Now

IEC 60335-1 Clause 22.32 Ceramic Material Fuchsine Spirit Pressure Test Apparatus

Product Information For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:

This ceramic material fushine spirit pressure test machine meets the requirements of IEC 60335-1 clause 22.32. It is use to determine if ceramic material is tightly sintered.

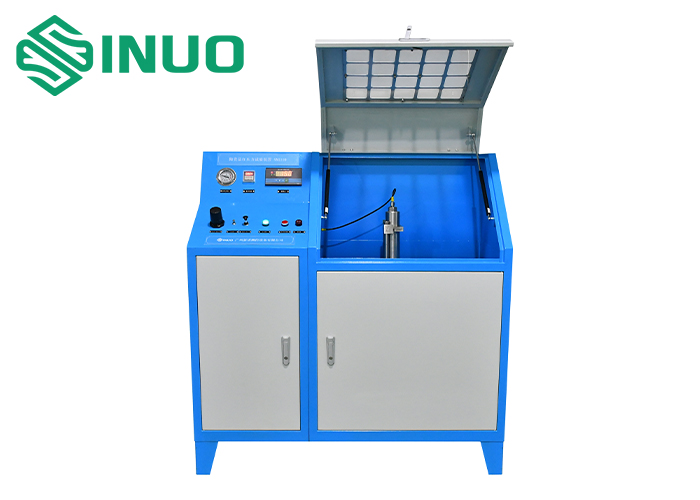

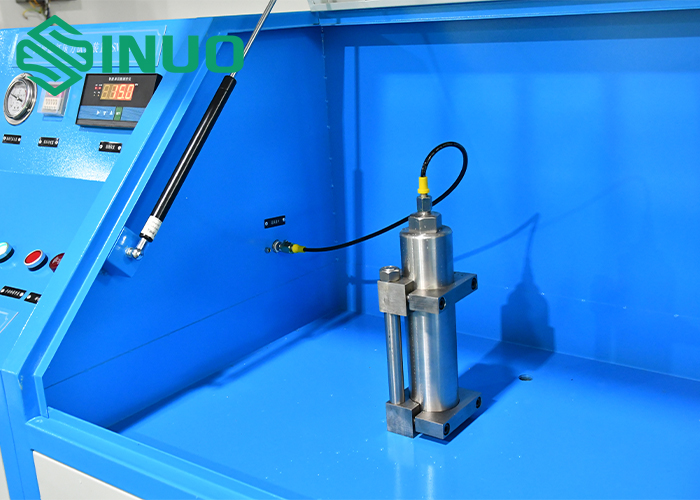

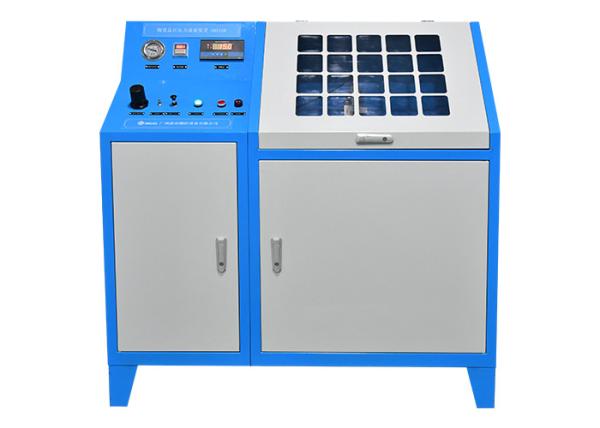

This test machine includes the test container, pressure boosting device and explosion-proof chamber with observation window, the whole operation is easy and safe.

It is use to determine if ceramic material is tightly sintered, consists of two parts: test container and pressure boosting device magenta.

Technical Parameters For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:

Test container	Volume >100ml, pressure bearing capacity >15mpa, made of stainless steel
Power supply	Match client's local power supply
Pressure hold time	0~99s can be set
Maximum test pressure	20mpa
Pressurization method	Manual pressurization
Test pressure range	0~20mpa±0.5mpa, can be adjusted
Boost rate	100kpa/s
Display mode	Digital display
Equipment dimensions	1200×500×1500(mm) W×H×D
Equipment weight	150kg
Power supply	AC220V±10%/50-60Hz,3KW
Test station	Single
Test pressure	0.5-20mpa±0.5mpa
Test completion reminder time	3 min
Test time	1~9999H
Container bottle	450ml
Solution	Configure

Test Principle For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:

The ceramic material is broken into pieces that are immersed in a solution containing 1 g of fuchsine in each 100 g of methylated spirit. The solution is maintained at a pressure not less than 15 MPa for a period so that the product of the test duration in hours and the test pressure in megapascals is approximately 180.
