Product Information For Load For Testing Rotating Spits:

The testing rotating spits load conforms to the standard of IEC 60335-2-9 clause 3.1.9.102 figure102, IEC60335-2-6 clause 3.1.9.104 figure 103, the equivalent mass is about 4.5kg.

Technical Parameters For Load For Testing Rotating Spits:

Test Procedures and Operation For Load For Testing Rotating Spits:

Please refer to the relevant standards.

Take IEC 60335-2-6:2018 clause 3.1.9.103:

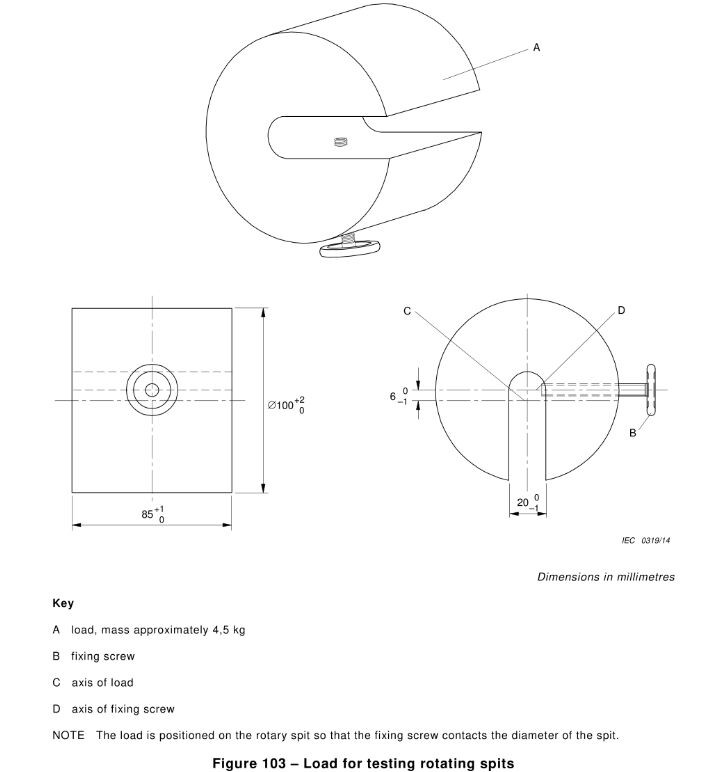

Rotating spits in ovens or grills are operated with the load on the rotating spit as shown in Figure 103. The appliance is operated taking into account the instructions with regard to

-the heating elements to be operated;

-the setting of the thermal control;

-the position of the door and grill pan.

In the absence of such instructions, the control is adjusted to its highest setting and the door is fully open or is placed in the most unfavorable intermediate position in which it may be left.

Any grill pan is placed in its lowest position.

Notice For Load For Testing Rotating Spits:

1. Please do not damage the appliance shape (such as scratching, bending, etc.).

2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.

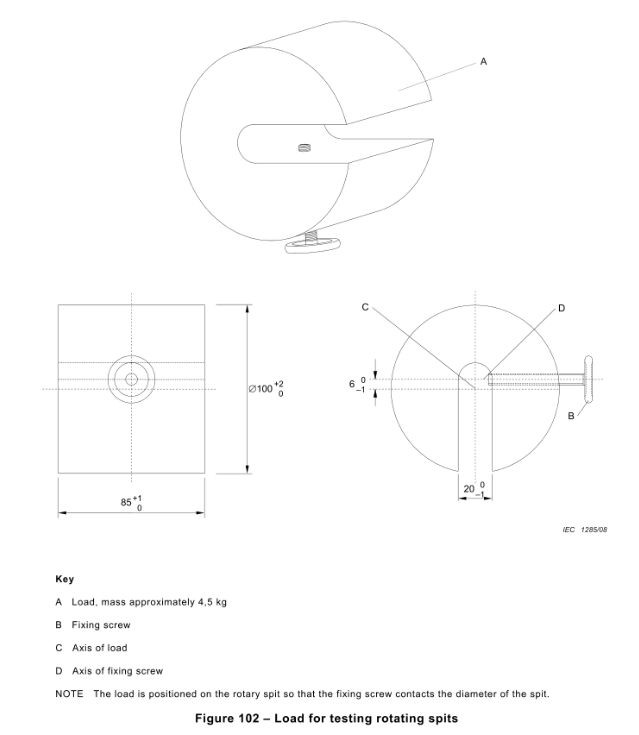

IEC 60335-2-9 clause 3.1.9.102 Figure102

IEC 60335-2 Testing Rotating Spits

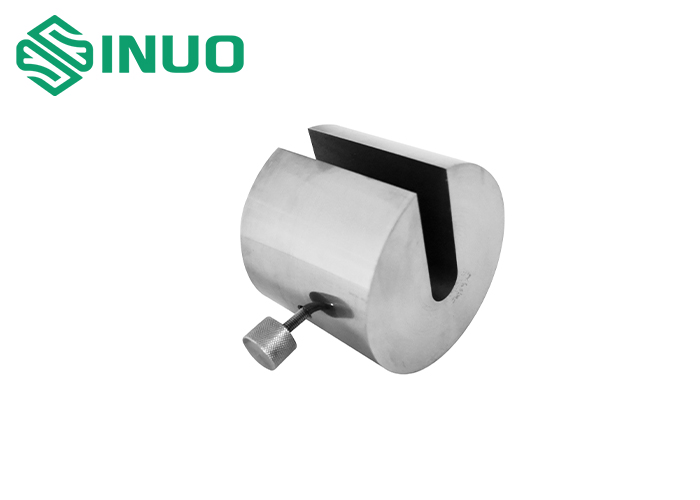

Stainless Steel Testing Rotating Spits
