IEC 60884-1 Figure 14 Screwless Terminals Deflection And Thermal Stress Test Apparatus

Name: IEC 608841 Figure 14 Screwless Terminals Deflection And Thermal Stress Test Apparatus
Brand: Sinuo
Price: 1 USD

IEC 60884-1 Figure 14 Screwless Terminals Deflection And Thermal Stress Test Apparatus Manufactures

Brand Name : Sinuo

Model Number : SN2112B

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30 Sets Per Month

Delivery Time : 25 Days

Packaging Details : Carton

Deflection angle : 0-360°

Deflection direction : 30°±3°

Deflection force : 0.25N, 0.5N, 1.0N

Number of trials : 192 cycles

On/off time : 30 minutes, can be preset

Test current : AC 1~99.9A±(3%±1A)

Voltage drop range : 0~199.9±（3%±1mv）

Judgment criteria : Not exceed 22.5mV

Contact Now

IEC 60884-1 Figure 14 Screwless Terminals Deflection And Thermal Stress Test Apparatus

Product Information:

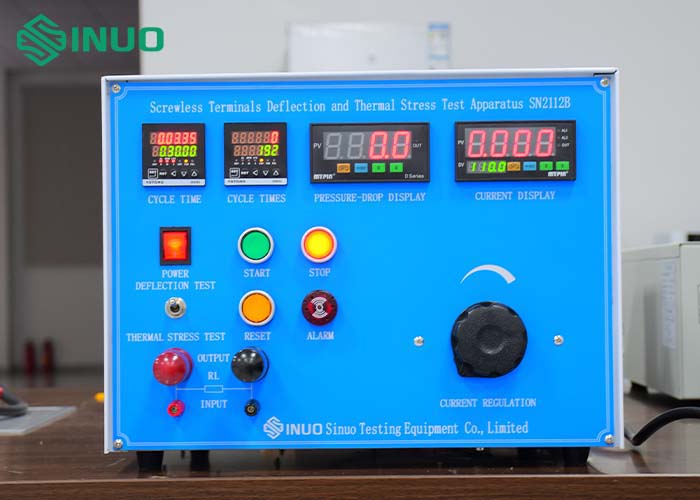

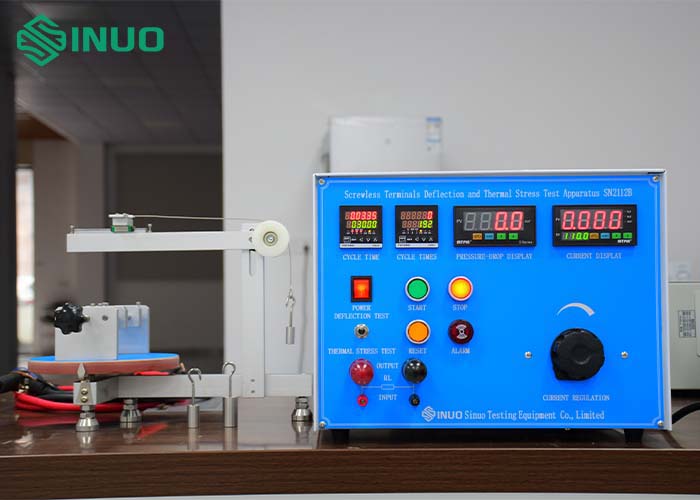

This device complies with IEC 60884-1:2022 clause 12.3.11 a) and b), clause 12.3.12 and figure 14, IEC 60669-1 clause 12.3.11, etc.

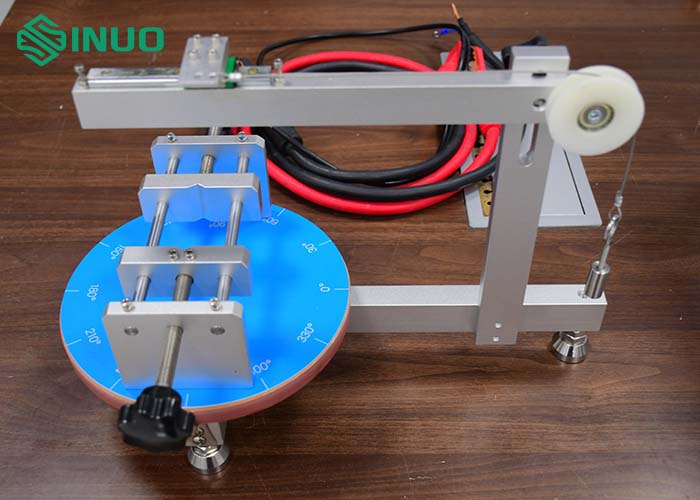

It is used to use to check whether the screwless terminals connected rigid solid conductor remains clamped, even when it has been deflected during normal installation. Deflecting the conductor and measuring the voltage drop, to check the screwless terminal clamping capacity and contacting performance. And it is also used to verify whether the unthreaded terminals can withstand the electrical and thermal stresses that occur during normal use.

The device is easy for operating, the load current is adjustable, the sample fixture is manufactured according to the standard requirements.

Technical Parameters:

Parameters Name	Parameter Data
Deflection Test
Power supply	Match client's local power supply conditions
Deflection angle	0-360°
Deflection direction	In any of the 12 directions differing from each other by 30°±3°
Deflection force	0.25N, 0.5N, 1.0N
Force applied direction	Perpendicular to the undeflected conductor
Test current	Max.100A
Thermal stress test
Number of trials (cycles)	192 cycles, can be preset
On/off time	On: 30 minutes, off: 30 minutes, can be preset
Test current	AC 1~99.9A±(3%±1A)；
Voltage drop measurement range	0~199.9±(3%±1mv)
Judgment criteria	The voltage drop shall not exceed 22.5mV

IEC 60884-1 Figure 14 Screwless Terminals Deflection And Thermal Stress Test Apparatus

Product Tags:

Thermal Stress Screwless Terminals Test Apparatus

Screwless Terminals Deflection Test Apparatus

IEC 60884-1 Figure 14 Screwless Terminals Deflection And Thermal Stress Test Apparatus Images
