IEC 62196 Automatic Air Tightness Detection Testing Machine Overpressure Testing 10L

Name: IEC 62196 Automatic Air Tightness Detection Testing Machine Overpressure Testing 10L
Brand: Sinuo
Price: 1 USD

IEC 62196 Automatic Air Tightness Detection Testing Machine Overpressure Testing 10L Manufactures

Brand Name : Sinuo

Model Number : SNQC1016

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood Case

Applied standard : IEC 62196-3-1

Applied clause : Clause 101.6

Test station : Single station

Test pressure : 1.0-10.0Bar

Display accuracy : 0.1 Bar

Test medium : Dry air

Driving air pressure : 0.2-0.8MPa

Volume size : Less than 10L

Contact Now

IEC 62196 Automatic Air Tightness Detection Testing Machine Overpressure Testing 10L

Product Information:

Standard: According to IEC62196-3-1 Clause 101.6 Overpressure Test.
Samples and restrictions: Test sealing performance test for volumes below 10L.
Application: Used to perform pressure leakage tests on sealing-required appliances containing liquid coolants.
Test principle: According to the different pressures of the sample, the system's booster pump outputs high pressure to verify the pressure of the sample.

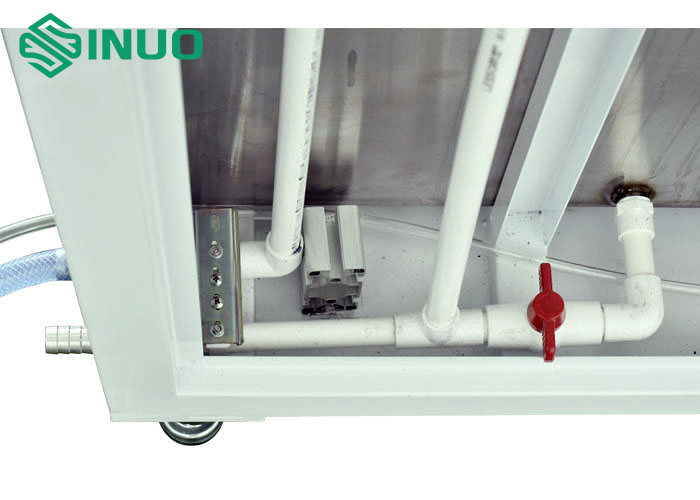

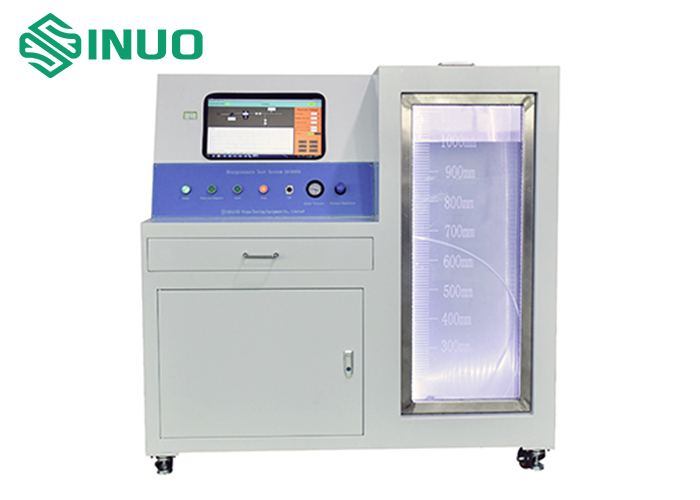

Structure and features: It consists of an electrical control system, a pressure control system and a water tank. The work pieces are manually installed and connected.
Usage environment:
Power supply: AC220V±10%/50-60Hz
Air source: 0.5-0.8MPa compressed air
Place of use: atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80) %RH; no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gases, good heat dissipation

Technical Parameters:

Test station	Single station
Electrical control method	Computer intelligent control and operation
Test pressure	1.0-10.0Bar, booster pump drive
Pressure control accuracy	+1% of the upper limit of the test pressure value, -1% of the lower limit
Display accuracy	0.1 Bar
Test medium	Dry air
Pressure control method	Computer control
Boost rate	Adjustable, non-uniform linear
Compress time	0-9999s can be set arbitrarily, with seconds as the timing unit, computer display
Test process	Boost-Pressure-Relieve Pressure
Driving air pressure	0.2-0.8MPa
Volume size	Less than 10L
Water tank size	WDH=500×500×1000mm
Output Interface	ZG1/4 internal thread

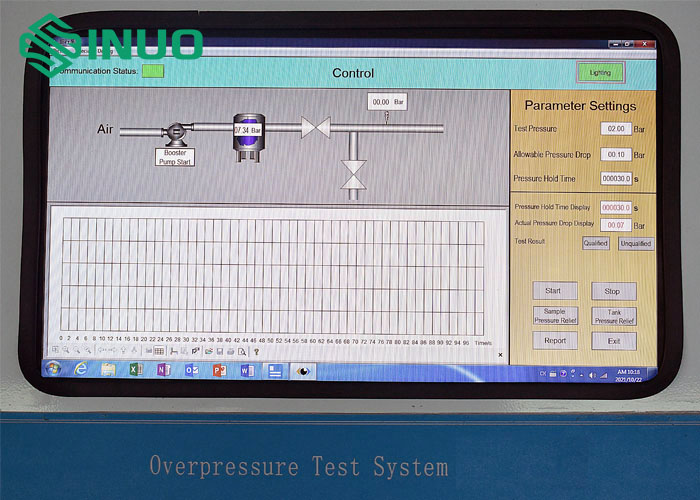

Pressure curve display	Real-time display of data acquisition software
Test data storage	Reports and excel test forms can be saved
Computer	Intel i7 4 G memory (or above) 512G SSD,windows7 operating system and OFFICE processing software, with RS232 communication interface
Safety protection device
Power supply	Leakage protection, overload and short circuit protection
Motor	Overload, short circuit protection
