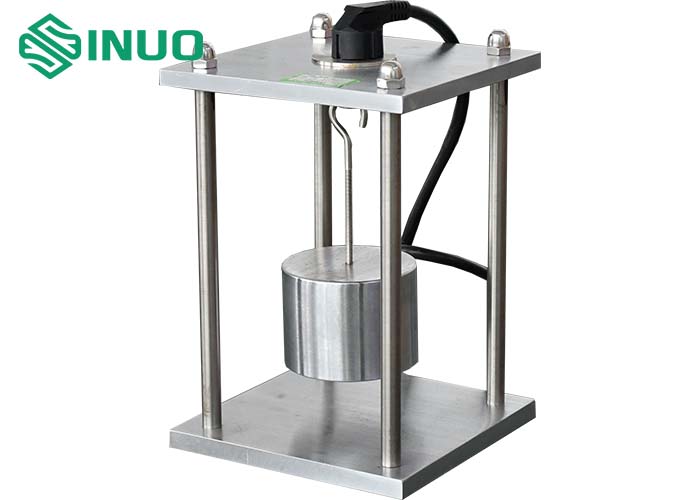

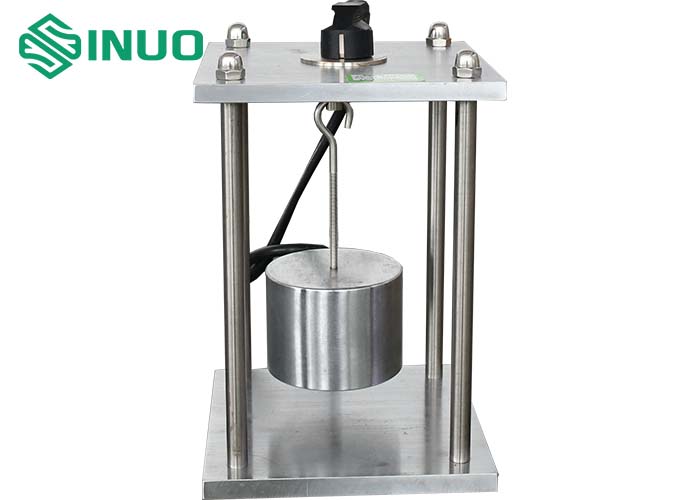

IEC 60320-1 Apparatus To Verify The Fixation Of Pins In The Body Of Plug
Product information:
Standard: IEC 60884-1: 2022 clause 24.11 and figure 33, IEC60320-1 clause 13.4.2.
Application: This device is use to verify the fixation of pins in the body of the plug
Test sample: Plug pins
Feature: In according with standard requirements, to verify the fixation of pins in the body of the plug
Technical parameters:
| Station | 1 station |

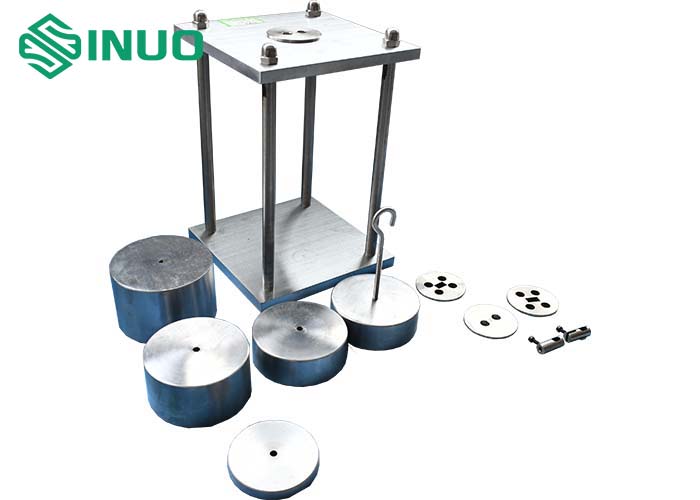

| Weights | 4N, 20N, 30N for ordinary hole, one in each; 50N, 20N with hook, one in each |
| Gauges | provide 6A plug gauge, 10A plug gauge, 16 plug gauge, one each (according to different plug standard requirements) |
| Hole size | For flat pins, hole size equal to pin size plus 4±0.44mm; For round pins, hole size equal to pin diameter plus 6±0.5mm. (Customizable) |
| Clamp unit | Plug pin clamp unit, 1 set |
| Conforms to standard | IEC 60884-1 2022 clause 24.11 and figure 33 |
Test procedures:
1. The plug is positioned on the steel plate in such a way that the centers of the circles circumscribing the pins coincide with the centers of the holes. Then insert the test plug into the socket in the direction of the longitudinal axis of the pin. After that, the plug is placed in the heating cabinet with temperature (70 ± 2) °C, 1 h after, a pull force is applied inside a heating cabinet
2. Choose the clamping fixture according to the shape of the plug, and make it is firmly connected with the plug (ensure it will not loose when exert a pull force)

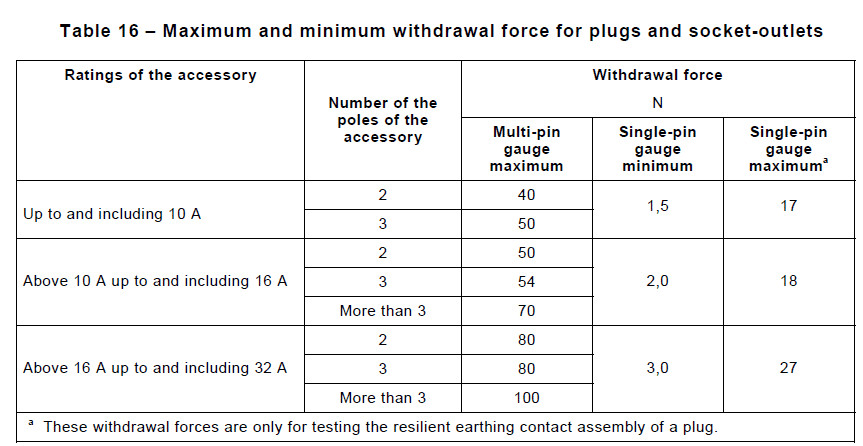

3. Choose the pull force weight according to the maximum withdrawal force as given in table 16 (can be achieved by the superposition), the weight is hooked in the ring of the clamp, handle with care, and don’t produce explosive tension.
4. The force is applied on each plug pin for 1 min, after the test, the plug is allowed to cool down to ambient temperature and it shall be verified that the displacement of any plug pin in the plug body should not excess 1 mm.
