IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment

Name: IEC 621961 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment
Brand: Sinuo
Price: 1 USD

IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment Manufactures

Brand Name : Sinuo

Model Number : SNQC1014

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30 Sets Per Month

Delivery Time : 20 Days

Packaging Details : Plywood Case

Applicable standards : IEC 62196-1

Applicable clause : Clause 26.3, fig 19

Dropping height : 1000mm

Dropping times : 8 times

Rotating device : 45°

Size : 2443*360*1132mm

Contact Now

IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment

Product information:

This testing device is required by IEC 62196-1:2022 clause 26.3, fig 19.

It is used to test the mechanical strength of rewirable plugs and vehicle connector which is equipped with flexible cable.

Test principle is that the free end of the cable and an additional rope or other flexible means, etc., attached to the flexible cable, both having a total length of 2,25 m, is fixed to a wall at a height of 1 m above the floor.

The sample is held so that the cable is horizontal and then it is allowed to fall on to a concrete floor. This is done eight times; the cable being rotated through 45° at its fixing each time.

Technical parameters:

1. The height of dropping: 1000mm

2. Dropping times:8

3. Rotating device:45°, it can be rotated in all sides.

4. Size:L*W*H 2443*360*1132mm

IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment

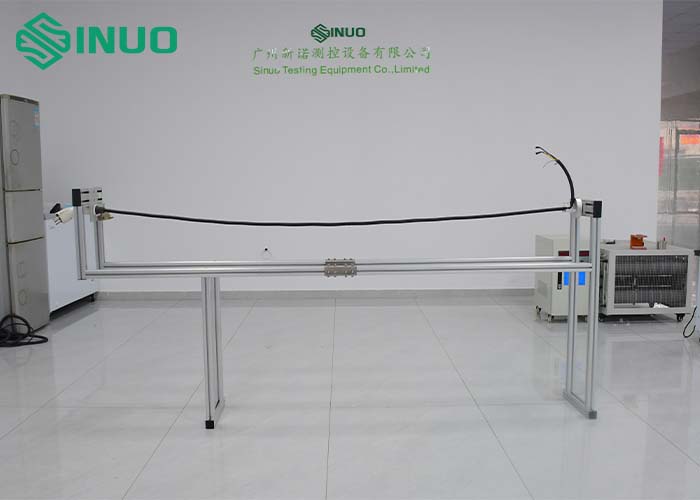

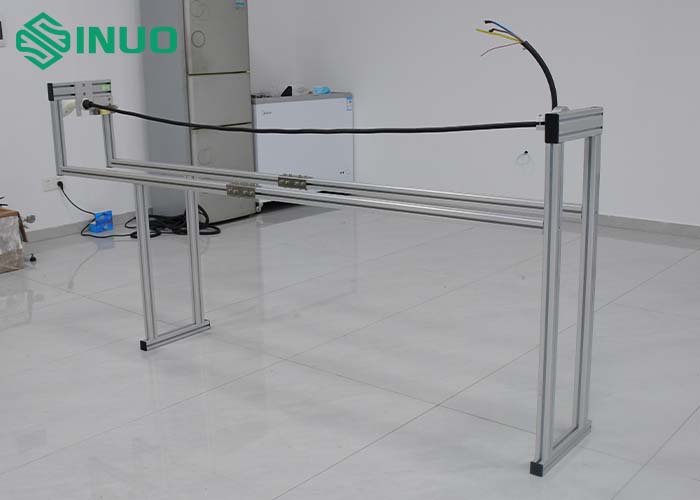

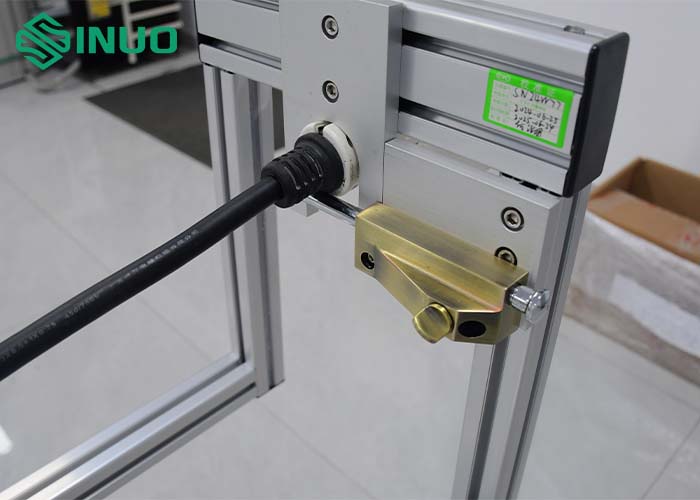

IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment Images
