Black Box Chamber Temperature Rise Test Corner for Electrical Product Safety IEC 60335-1

Name: Black Box Chamber Temperature Rise Test Corner for Electrical Product Safety IEC 603351
Brand: Sinuo
Price: 1 USD

Black Box Chamber Temperature Rise Test Corner for Electrical Product Safety IEC 60335-1 Manufactures

Brand Name : Sinuo

Model Number : SN1102-2

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 20 days

Packaging Details : Plywood Case

Inner size : L*W*H: 1000*1000*1000mm

Box side : 4 sides (1 top,3 side, non bot)

Material : Black Plywood

Round hole : 35 mm

Brand : Sinuo

Warranty : 1 year

Contact Now

Black Box Chamber Temperature Rise Test Corner for Electrical Product Safety IEC 60335-1

Product information:

This test corner conforms to the standard requirement of IEC 60335-1 clause 11.2, IEC60065 clause 7, etc. It is designed and manufactured to provide the required environment for the temperature rising test of all kinds of electrical, electrical products. It can be customized according to the different testing samples.

Technical parameters:

1. Inner size: L*W*H: 1000*1000*1000mm (Side plate*2, base plate*1, top plate*1)

1. Overall Dimensions:
1000 mm (D) × 1000 mm (W) × 1000 mm (H)

2. Structure:
4-sided box: 1 top plate and 3 side panels (no bottom panel)
Designed without sensors or thermocouples

3. Fixed Panels:
Three fixed vertical side panels
Back panel includes one round hole:
Hole Diameter: 35 mm
Location: Bottom corner of the back panel

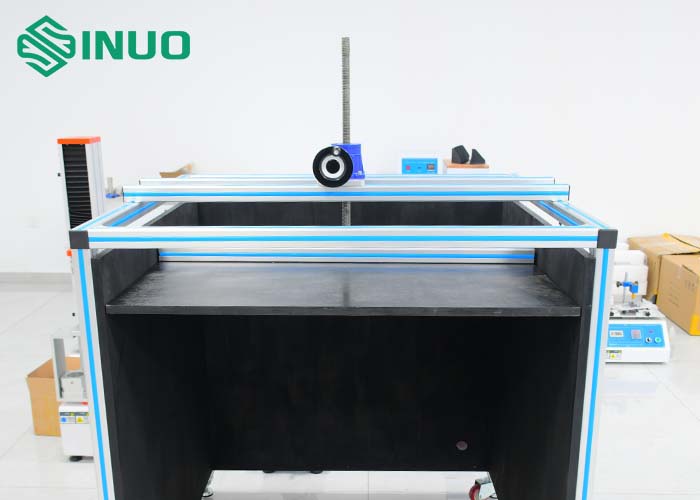

4. Top Plate (Non-fixed / Adjustable):
Separate and removable top panel
One round hole in the corner
Hole Diameter: 35 mm
Vertically adjustable height:
Travel range: 850 mm to 1000 mm
Adjustment steps: 10 mm
Total travel distance: 150 mm from the top

Black Box Chamber Temperature Rise Test Corner for Electrical Product Safety IEC 60335-1

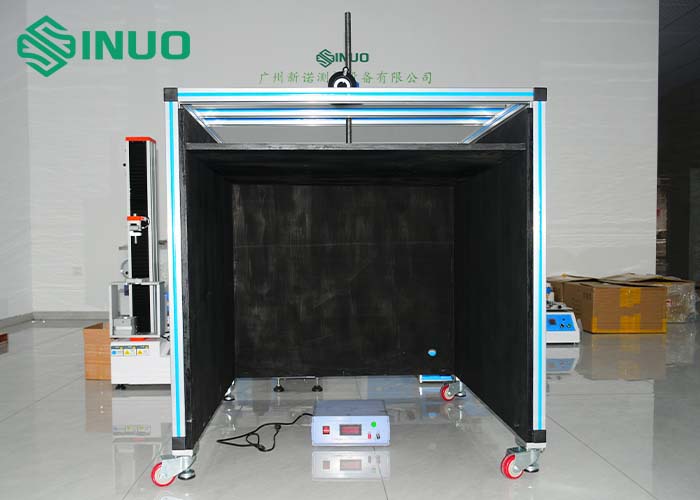

Black Box Chamber Temperature Rise Test Corner for Electrical Product Safety IEC 60335-1 Images
