IEC 60335-1 Clause 14 Impulse Test Generator Max. 12.5kV Transient Over Voltage Testing

Brand Name : Sinuo

Model Number : SN1104

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30 sets per month

Delivery Time : 25 Days

Packaging Details : Carton

DC high voltage : Max. 12.5kV

Internal resistance : 2Ω,12Ω, 40Ω, 500Ω

Impact interval time : 5 ~ 99s

Impact cycles : 1 ~ 9999

Polarity : Positive and negative

Rated voltage : 220V±10%, 50/60Hz

Low peak voltage : 300 V~ 2,500V

High peak voltage : 2,500 V~12,500V

Contact Now

IEC 60335-1 Clause 14 Impulse Test Generator Max. 12.5kV Transient Over Voltage Testing

Product Information:

Standard: Conform to IEC 60335-1 clause 14, etc.

Application: It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.

Test sample: Household appliance, Audio, video and similar electronic apparatus.

Feature: The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.


Technical Parameters:

Model SN1104
DC high voltage Max. 12.5kV
Impulse voltage wave

Impulse wavefront time: 1.2 µs ± 30 %;

Half value of after wave time: 50 µs ± 20 %

Please note that the waveform should be checked on an external oscilloscope
Instrument internal resistance

2Ω,12Ω, 40Ω, 500Ω

(Accuracy ± 10%)
Peak voltage

Low: 300 V~ 2,500V;

High: 2,500 V~12,500V
Impact interval time 5 ~ 99s
Impact cycles 1 ~ 9999
Polarity Positive and negative
Working power source Rated voltage: ~ 220V±10%, 50/60Hz
Dimension 430mm×180mm×480mm
Weight 30 KG

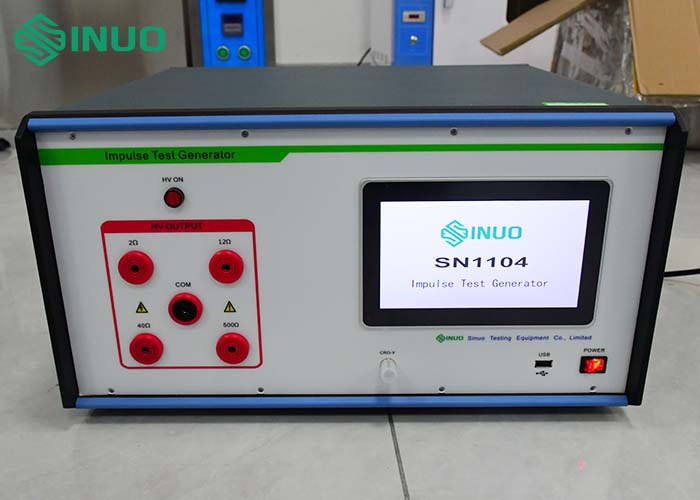

IEC 60335-1 Clause 14 Impulse Test Generator Max. 12.5kV Transient Over Voltage Testing

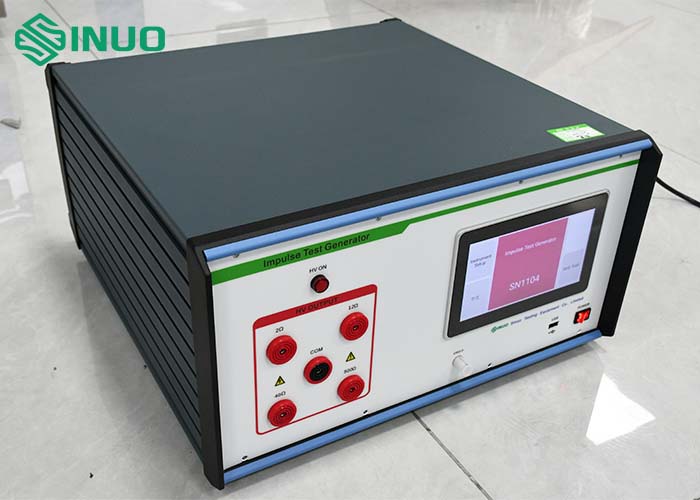

IEC 60335-1 Clause 14 Impulse Test Generator Max. 12.5kV Transient Over Voltage Testing
IEC 60335-1 Clause 14 Impulse Test Generator Max. 12.5kV Transient Over Voltage Testing
