UN 38.3 6000m Altitude & Pressure Test Chamber for Battery Testing
Product information:
The Altitude & Pressure Test Chamber is widely utilized across various research and application fields, including biochemistry, pharmaceuticals, medical and healthcare, chemical industries, agricultural research, new energy, and electronics. Designed for precision testing under simulated altitude conditions, this chamber ensures efficient and rapid drying of powders, baking, and processing of heat-sensitive, easily decomposable, and oxidation-prone materials, as well as items with complex compositions. Its advanced technology and compliance with international standards make it an essential tool for high-precision testing and research.
Product Features:
1. The design features a modern 3D aesthetic, offering a strong sense of depth and a sleek, stylish appearance. The trendy industrial color scheme combines smooth gradients, high contrast, and a contemporary, fashionable vibe.
2. The color LCD touchscreen controller boasts a user-friendly interface with intuitive controls, along with WEB remote control functionality for enhanced convenience.
3. The system includes an independent, integrated self-balancing air pressure device, ensuring that the internal air pressure remains almost identical to the external pressure throughout the testing process.
4. Equipped with a specialized magnetorheological industrial motor, the device is designed for low noise, high resistance to extreme temperatures, and excellent performance in low air pressure conditions.
Technical parameters:
| Equipment Dimensions |
| Nominal Volume | 512L |
| Internal Chamber Dimensions | W800mm*H800mm*D800mm |
| External Dimensions | W1050mm * H1950mm * D1380mm (excluding protruding parts such as the motor, door lock, door hinges, etc.) |
| Weight | 680kg |
| Performance Indicators |
| Test Environment Conditions | The environmental temperature is +25°C, relative humidity ≤85%, atmospheric pressure: 86-106 kPa, with no samples inside the test chamber. |
| Temperature Range | -15℃~+80℃ |
| Temperature Deviation | ≤±2.0℃ |
| Temperature Fluctuation | ≤1.0°C (If according to GB/T5170.2-1996, the fluctuation is better than ±0.5°C) |
| Temperature Uniformity | ≤2.0℃ |
| Heating Rate | -15°C → +80°C, heating rate ≥ 3°C/min, averaged over the entire process, no load. 4o mini |
| Cooling Rate | +80°C → -15°C, cooling rate ≥ 1°C/min, averaged over the entire process, no load. |
| Pressure Range | 47.2 kPa ~ atmospheric pressure. |
| Corresponding Altitude | 0～6000m |
| Pressure Deviation | ≤±2kPa |
| Pressure Fluctuation | =±0.1KPa |
Product Tags:
|
|

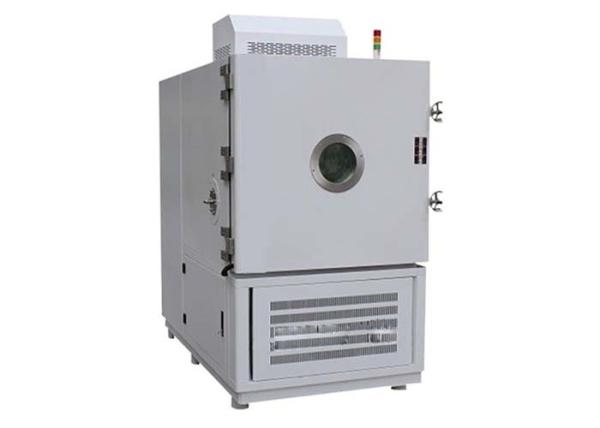

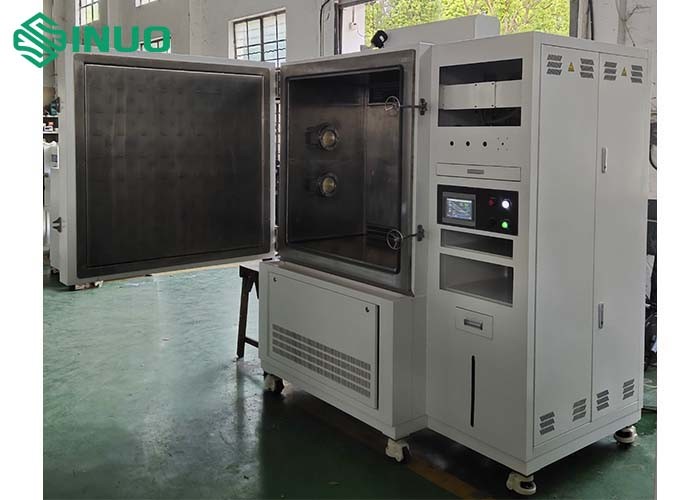

6000m Altitude & Pressure Test Chamber for UN 38.3 Battery Testing Images
|
