IEC 62196-1 Short-time Test Current and Temperature Rising Test System Test Current 6500A

Name: IEC 621961 Shorttime Test Current and Temperature Rising Test System Test Current 6500A
Brand: Sinuo
Price: 1 USD

IEC 62196-1 Short-time Test Current and Temperature Rising Test System Test Current 6500A Manufactures

Brand Name : Sinuo

Model Number : SNQC1006B-6500A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 5 set per month

Delivery Time : 30 days

Packaging Details : Plywood Case

Output Workstation : 1 DC output station

Test Current Output : DC 200–6500A

Output Voltage : DC less than DC 15V

Contact Power Supply : Current range AC (0–2) A

Continuous Mode Test Time : 0.01–99.99 hours

On/Off Mode Power On/Off Time : 0.01–99.99 hours

Current Display Accuracy : ±(0.25% of reading + 0.25% of range), resolution 1A

Voltage Display Accuracy : ±(0.25% of reading + 0.25% of range), resolution 0.01V

Contact Now

IEC 62196-1 Short-time Test Current and Temperature Rising Test System Test Current 6500A

Product Overview

This advanced test system complies with IEC 62196-1Ed.4CDV 2020 (clause 12.3, 24, 34.2, 34.4, 35.4), IEC 62916-2, and IEC 62916-3 standards. Designed for evaluating temperature rise in EV plugs and sockets under rated current conditions, it accurately assesses surface heating of electrical accessories and verifies terminal temperature rise compliance with international standards. The system also performs short-time high current withstand tests for grounding contacts.

Key Features

Computer-controlled operation with custom software for standardized testing procedures
Comprehensive assessment of surface heating and electrode temperature rise in charging interfaces
Automated data collection and analysis with built-in standard compliance verification
Multiple operating modes for flexible testing scenarios
Precision temperature measurement system with live testing capability

Technical Specifications

Output Workstation	1 DC output station
Maximum Output Voltage	DC < 15V
Adjustable Test Current	DC 200-6500A
Current Display Accuracy	±(0.25% reading + 0.25% range), 1A resolution
Voltage Display Accuracy	±(0.25% reading + 0.25% range), 0.01V resolution
Test Current Stability	±(1% set value + 0.5A), ~1s response time

Operating Modes

Continuous Mode: Test duration 0.01-99.99 hours
On/Off Mode: Programmable power cycles (0.01-99.99 hours on/off, 1-9999 cycles)
Automatic Temperature Control:
- Temperature rise setting: 0-100°C
- Stability accuracy: ±0.5°C
- Automatically calculates required current for target temperature

Temperature Measurement System

Range: 0-260°C with ±0.3% + 1°C accuracy
16 measurement channels (including ambient temperature)
Supports J, K, T, E, S, N, B, R thermocouples
Includes 20 K-type 30AWG fine wire thermocouples (2m length)
Live testing capability without instrument damage
Adjustable scanning speed: 0.1-1800 seconds per channel
Automatic ambient temperature compensation

Additional Features

Voltage drop and resistance testing capability
Touchscreen industrial control computer (Pentium 4/1.8G, 4GB RAM, 64GB SSD)
Programmable current settings (≥10 segments)
Real-time data visualization with adjustable sampling (100ms-1800s)
8GB+ data storage with USB export (CSV, XLSX formats)
Overload/overcurrent protection with automatic cutoff

Physical Specifications

Power Supply: AC 220V ±10%, 50/60Hz, 50KVA
Dimensions: 1000(W) × 1300(D) × 1800(H) mm
Weight: ~400kg with heavy-duty casters
Test Fixture: 800×400×400mm with acrylic transparent cover

IEC 62196-1 Short-time Test Current and Temperature Rising Test System Test Current 6500A

System interface showing temperature control settings

Temperature monitoring with real-time curve display

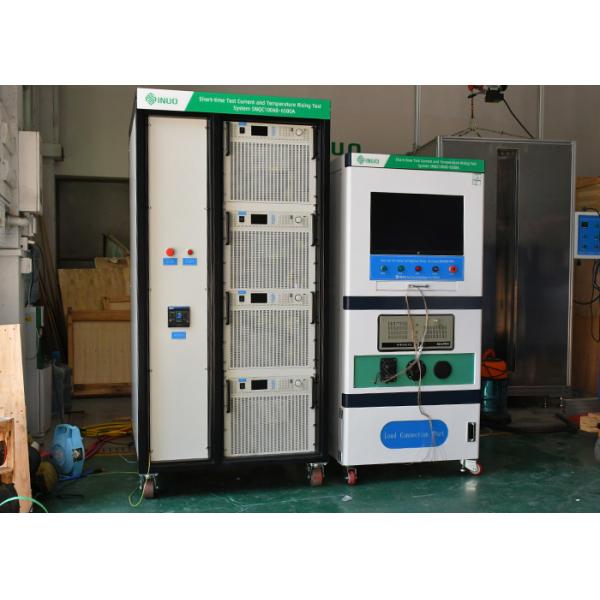

Complete test system configuration

Test fixture detail with transparent acrylic cover
